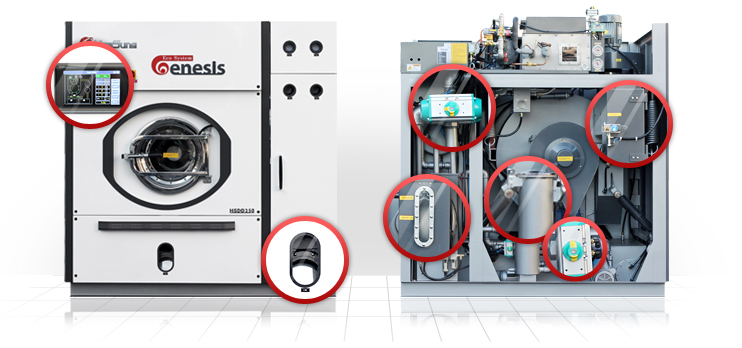

Genesis

Model:	HSDD250
Produce:	KOREA
Make:	HWASUNG - KOREA
Price	CALL

Price Liên hệ Market Price

Feature

2x2x2 systeam
Two tanks, two pumps circuit, and two cartridge filters guarantee perfectly cleaned solvents with no re-deposition and fresh and clean garments every load.
Automatic Self-Cleaning Solvent Tanks
Two solvent tanks are built to self-clean with pre-programmed system during the washing cycle to achieve sludge free solvent tanks.
Smart Touch Screen Computer
Genesis is equipped with the latest "Smart Touch" technology computer system which automatically controls and adjusts washing speed, solvent temperatures, extract speed, inverter speed, and drying temperatures. It features "Maintenance Alert System" which keeps accurate accounts of operation and alerts operator when routine maintenances are required. Other features include daily service reminder, manual overrides, air temperature controls, and soap injection control.
Self-Balancing Soft Mount System
With 25 years of experiences in commercial and industrial laundry system, we have built the most quite and self-balancing soft mount system in the world. Maximum extraction speed of 800rpm, it guarantees the most quite and fastest extraction and drying cycle.
Flash Point Temperature Control Drying System
Genesis is equipped with four thermostats to control the inlet and the outlet air temperatures as well as the refrigeration condenser and solvent temperatures. Temperatures are controlled to keep solvent vapor below the solvent flash point level. This safety system along with nitrogen (N2) injection system will assure the safety while achieving fast drying without overheating.
"Cascade" Washing System
We have designed the basket and the housing to allow solvent to spray into the basket from the top of the drum housing to give cascade effect during wash cycle to achieve the most effective cleaning and stain removal.
Multi Stage Water Separator
two stage water separator only in Genesis assures the fast water/solvent separation and maximum solvent quality. This allows solvent purity and prevents bacteria and odor.
Front-Access Gages
Filters, Compressed Air, and water pressure gages are located in the front for easy reading. All illuminated sight glasses and loading door use LED lights for quick and easy visual inspection.

Specification

Specifications	kg	HSDD250	lbs	HSDD250
Load Capacity
Load Capacity	kg/lbs	22	lbs	50
Drum & Drum Housing
Diameter	mm	970	inch	38
Depth	mm	530	inch	21
Drum Wash Speed	R.P.M	15~60	R.P.M	15~60
Low Extract	Low R.P.M	200~600	Low R.P.M	200~600
High Extract	High R.P.M	600~800	High R.P.M	600~800
Drum	Quality	Stainless steel
Drum Housing	Quality	steel
Tank Capacity
1 tank	Liter	200	gal	55
2 tank	Liter	200	gal	55
Filter
1 Tank Filter	ea/mm	2/470	ea/inch	2/18
2 Tank Filter	ea/mm	2/470	ea/inch	2/18
Weight with Solvent
Weight with Solvent	kg	3,000	lbs	6,602

Specifications	kg	HSDD250	lbs	HSDD250
Motor & Inverter
Motor	kw/ph	5.5/3p	hp/hp	7/3p
Fan Motor	kw/ph	2.2/3p	hp/hp	3/3p
Inverter	kw	7.5	hp	10
Pump Motor	kw	0.75	hp	1
Refrigeration System
Compressor	kw	3.7
Refrigeration		R-404A		R-404A
Power 220v 3ph 60hz 11kw 50amp
Pressure
Air Pressure	kg/cm²	6	psi	87
Steam Pressure	kg/cm²	4~6	psi	57~87
Water Pressure	kg/cm²	1~	psi	15~
MACHINE DIMENSIONS
Base Width	mm	2,000	inch	79
Base Depth	mm	1,600	inch	63
Base Height	mm	2,200	inch	87
Weight	kg	2,500	lbs	5,500
